Price Details

Price: £28,500 GBP
Location: Maldon, Essex CM9, GB
Make: A Gipon design Sailing Barge Yacht.
Year: 1976
Condition: Good condition, very well maintained, in commission.
Category: Traditional Sail auxiliary power
Class: Schokker Dutch Sailing Barge Yacht
Keel Type: rounded chines flat bottomed

Description

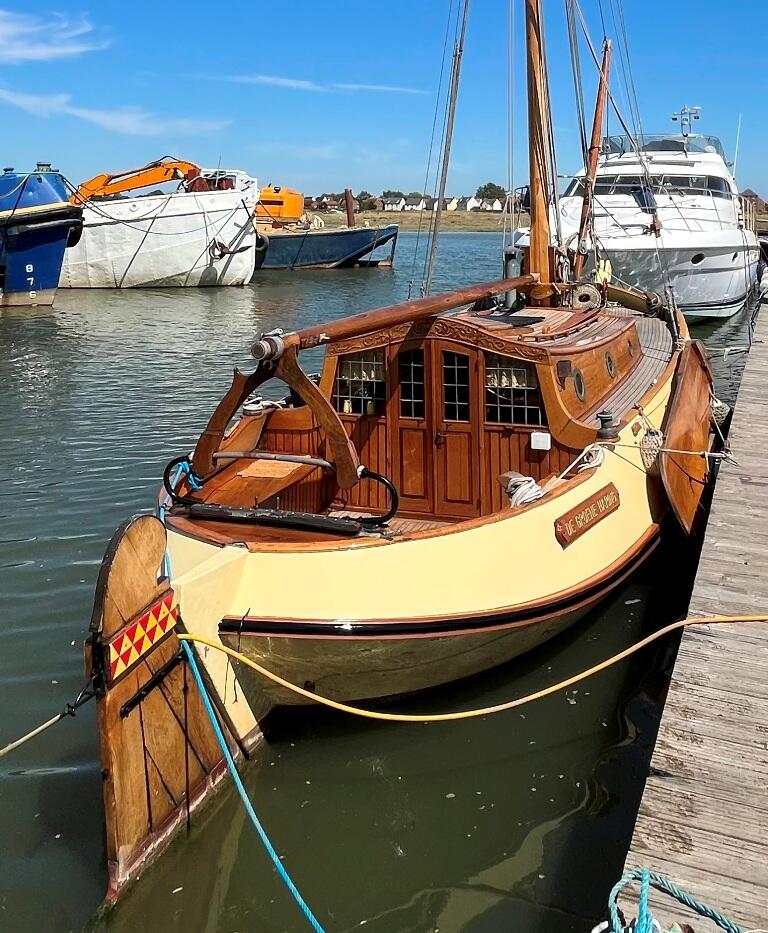

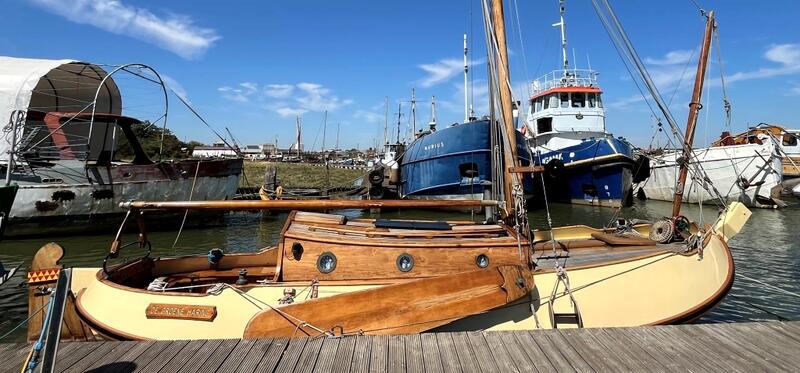

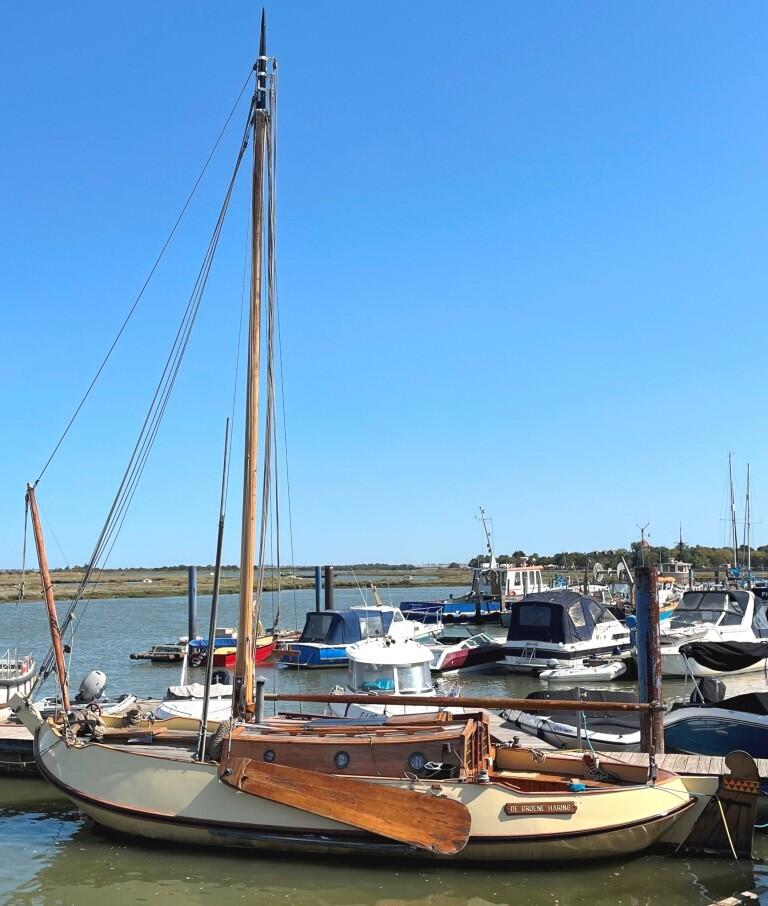

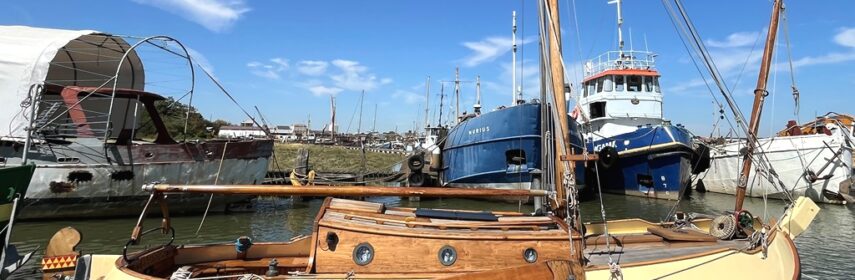

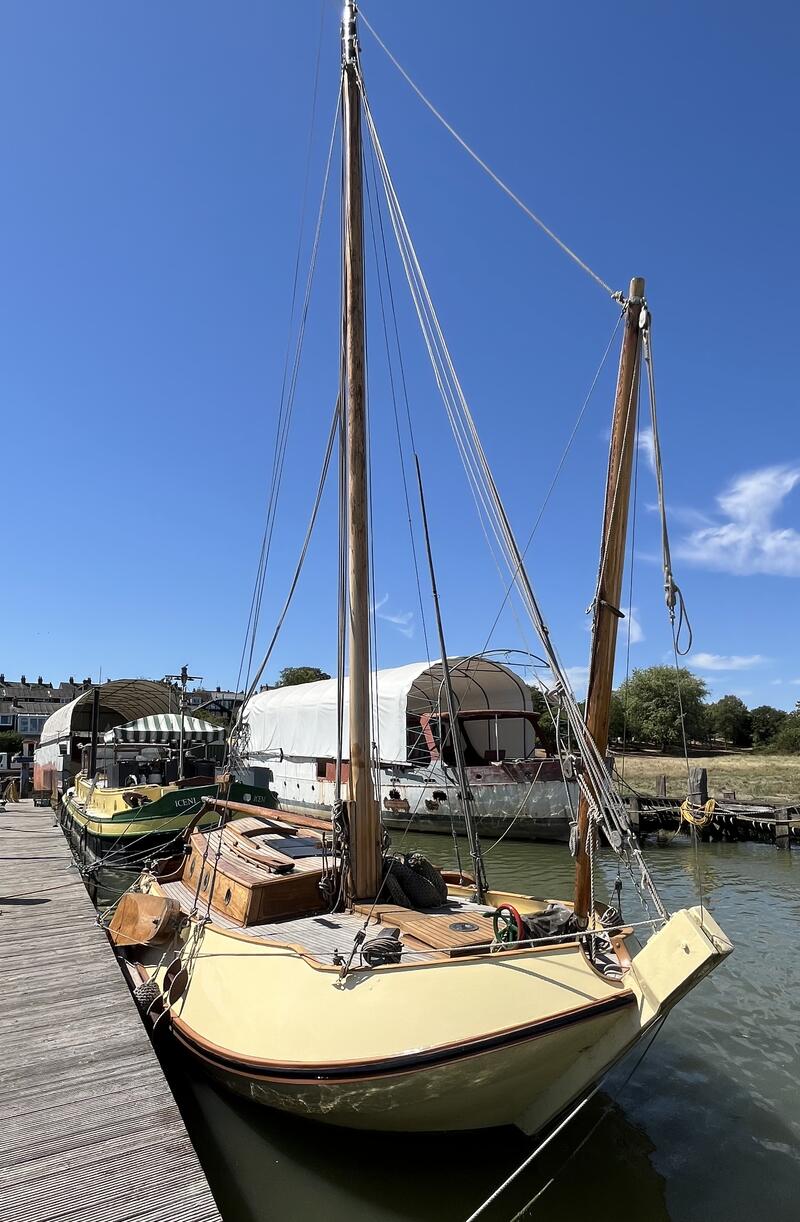

Green Herring, a very eye-catching Authentic, traditional Dutch sailing barge yacht. built by Aldert Been to a Gipon design of Shocker barge. Previous owners used to trail her to the different Regattas and Races in Germany, Holland, as professional sailors.
She was brought in Holland by her present owner 8 years ago. She was in a very neglected state, bought over by lorry to the UK. Her owner has lavished much time and effort into bringing her up to the condition she is now found.
Used as a little sanctuary of peace and tranquillity on the water./ an alternative Summer house. rather than sailing.

Length

Nominal Length: 9.30m
Length Overall: 9.27m
Length Of Deck: 9.14m
Length At Water Line: 8.23m

Measurements

Beam: 3.30m
Draft: 0.60m
Air Draft: 10.00m
Max Draft: 0.60m
Keel Up: 0.60m
Keel Down: 2.25m  Leeboards

Specifications

Fuel Tank Capacity: 75litres
Water Tank Capacity: 50litres
Displacement: 5000kilograms
Cruising Speed: 9Kms  Maximum.11kms
Engine Power: 25hp
Number of Engines: 1

Accommodation

Berths: 4
Cabins: 2
Heads: 1
Passenger Capacity: 4

Builder/Designer

Builder: Aldert Been Boatyard
Designer: Gipon
Boat Name: De Groene Herring

Hull

Hull Material: Welded steel
Hull Design: Displacement with flat bottom
Hull Speed: 11 kms

Engine

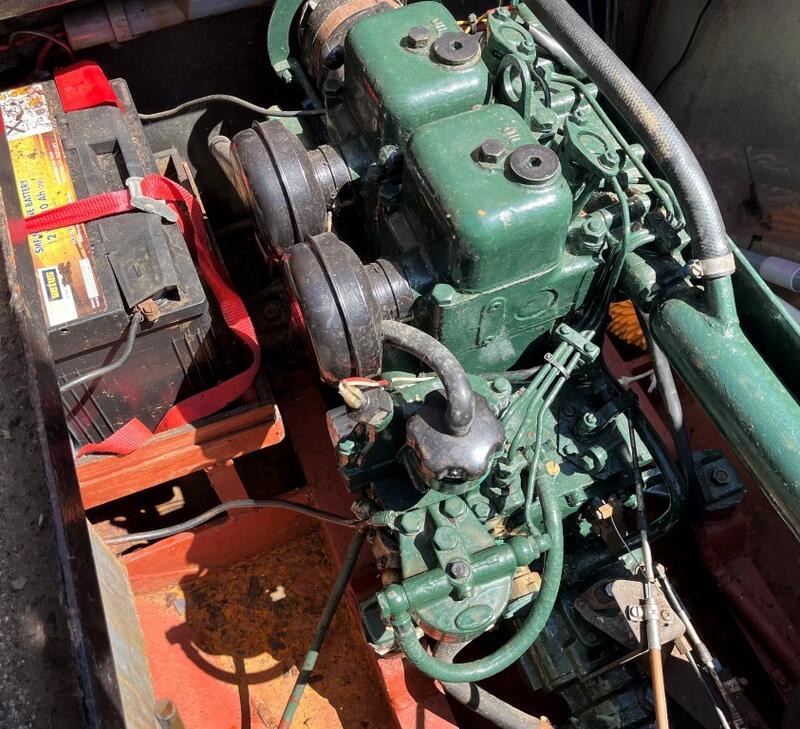

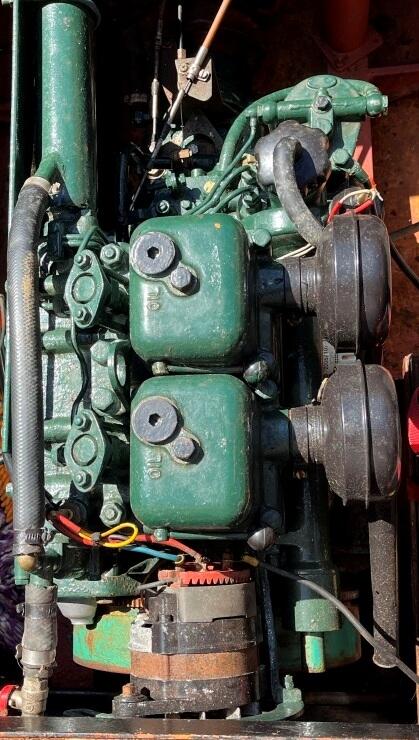

Engine Description: Volvo Penta MD2 D, 25hp diesel, fully overhauled 2006.
Stainless steel fuel tank. filler in deck. 110amp heavy duty battery, in the engine compartment sited in the cockpit sole.
Shaft driven propeller.



Construction:



Welded steel plate 25mm thick, rounded bow and stern. flat bottomed. Hulled  and underwater  all epoxy coated paint system. Topsides beautifully finished in gloss 2 pack paints.

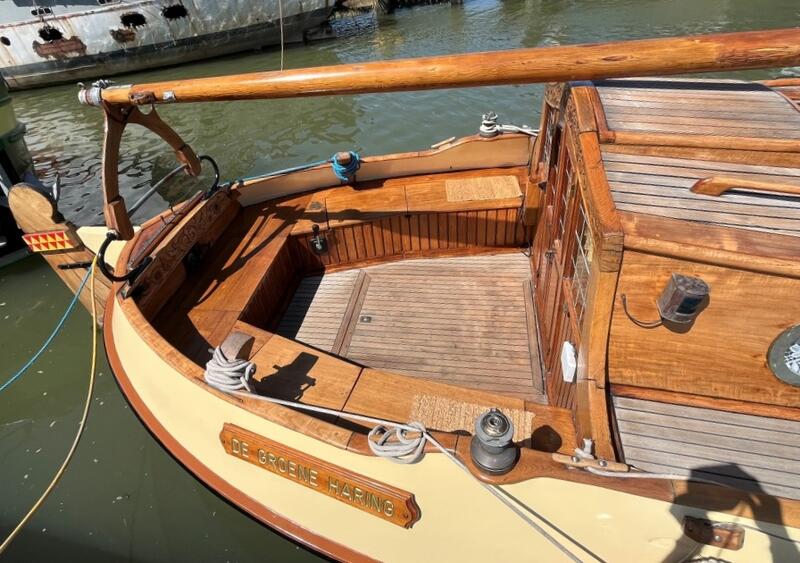

Her decks, cockpit, cockpit pit furniture, lockers and superstructure all  Teak. Carved feature beams. varnished finish

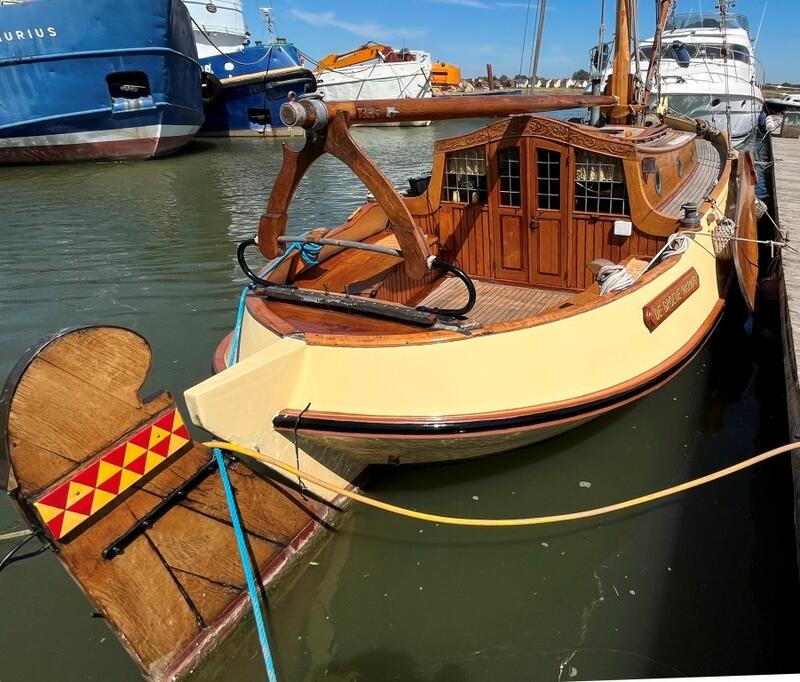

Transom hung wooden rudder. Pair of wooden leeboards. Stem post extends forward of the deck, bowsprit lowers when required.

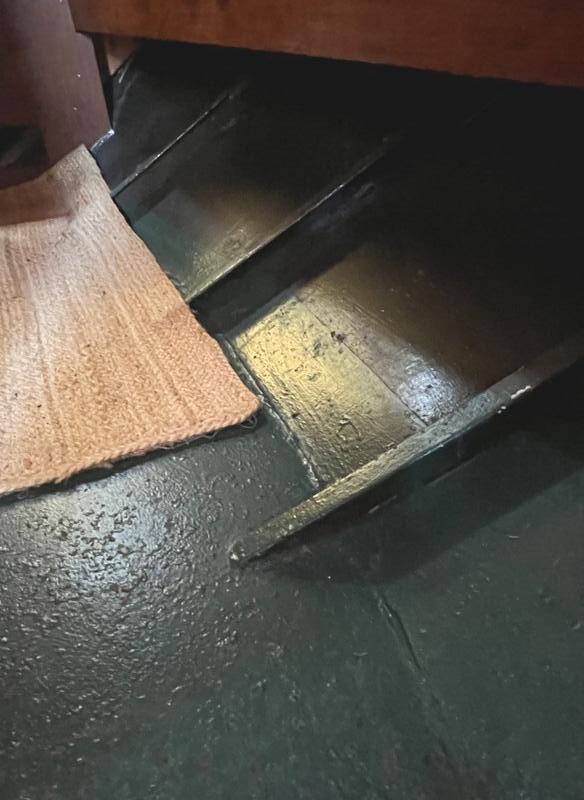

Flatbottomed, no bilge, all painted throughout.

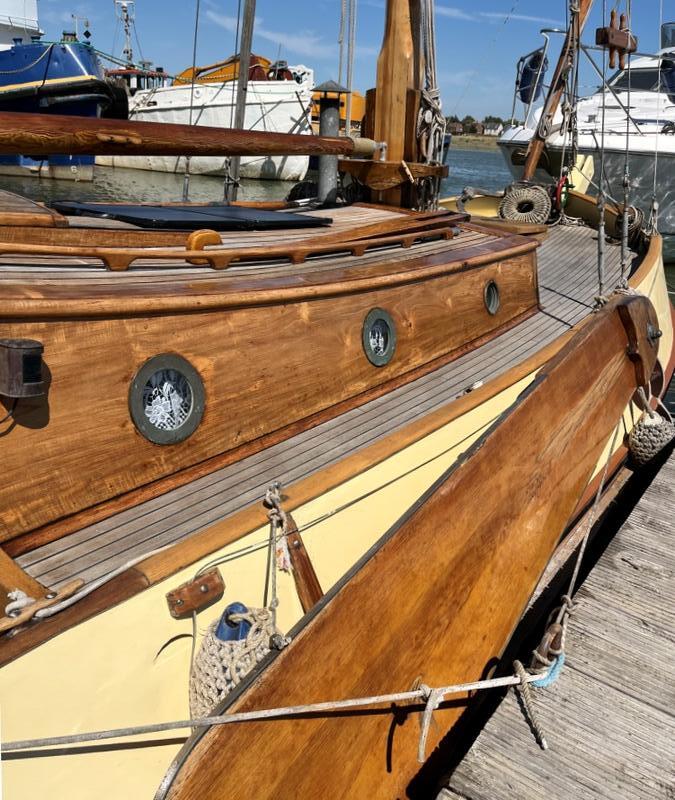

6 portlights let in to the coach roof sides. 2 x opening. 4 x fixed.

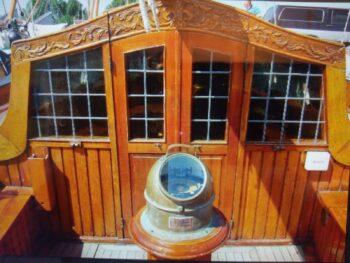

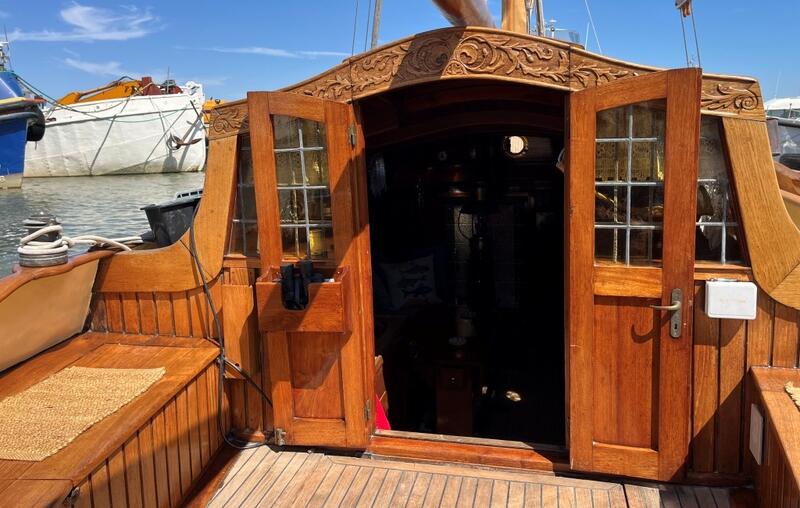

Entrance bulkhead fitted with leaded light pane and varnished teak.  windows double entrance doors ( with lock)  a sliding hatch over.

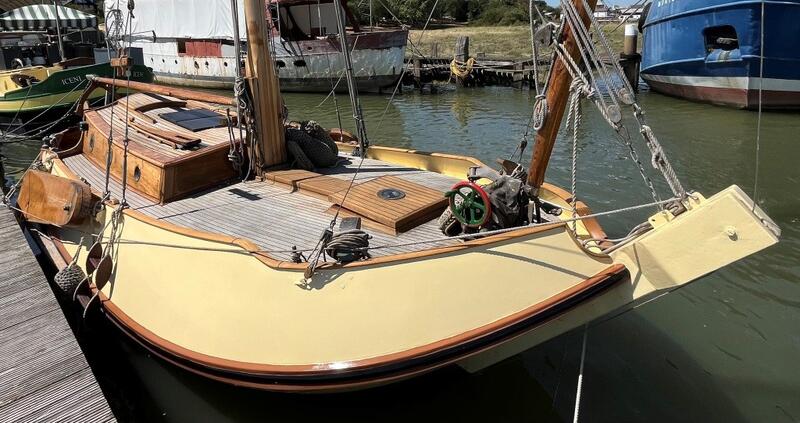

Teak laid decks and hatches. 2 x prism deck lights let in to the foredeck. Teak laid hatch over the fore cabin.





Accommodation:



1.90m headroom, reduces as you go forward.

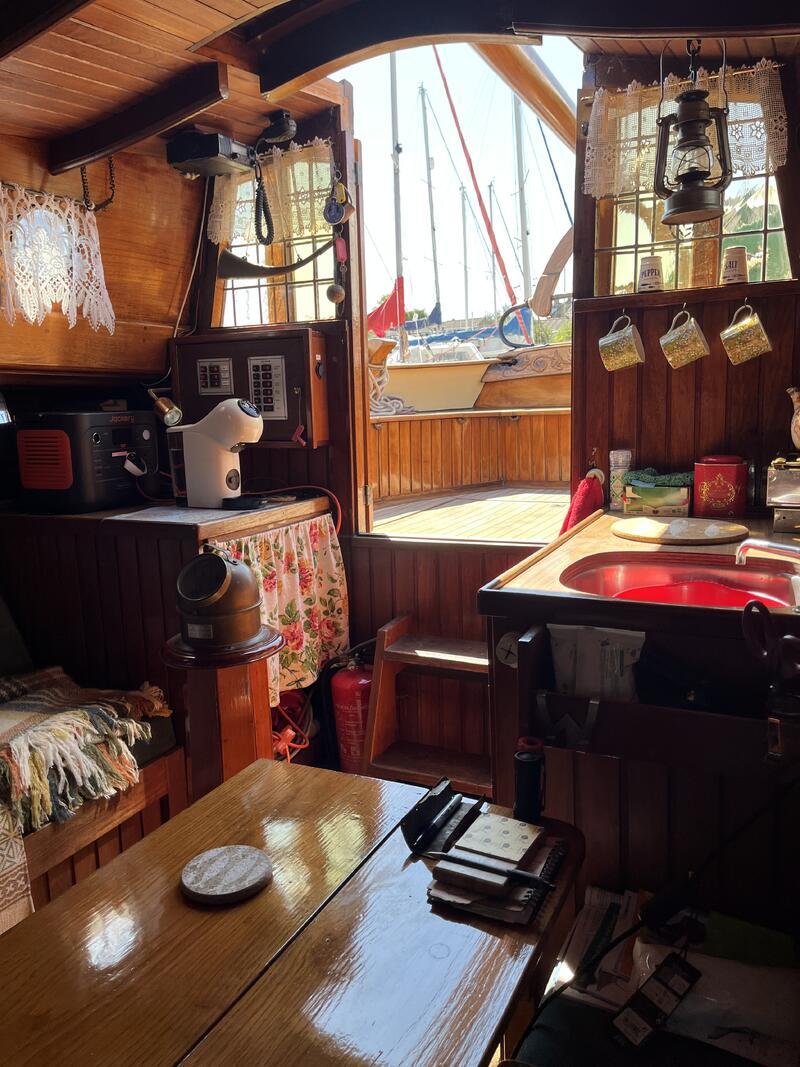

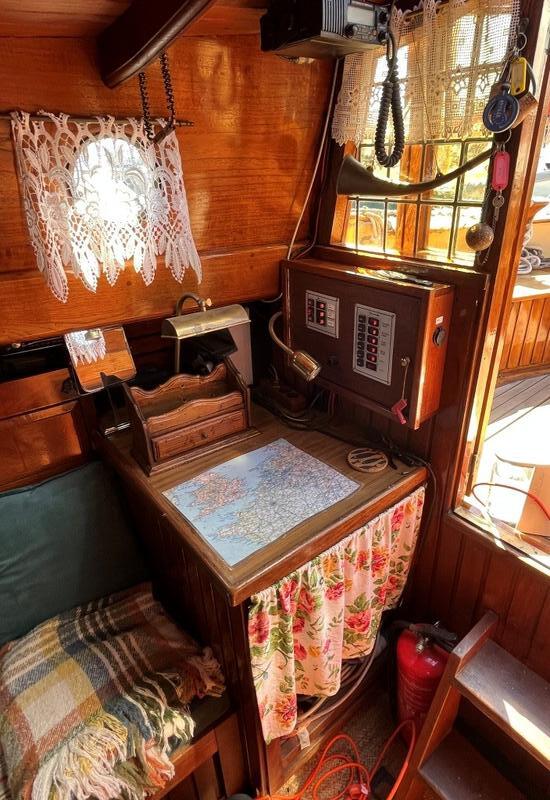

Sliding hatch over the companionway steps, immediately to port is the galley facility with a nav station opposite.
The entire accommodation cabin was professionally fitted out. Real craftsmen constructed her fitting out, fixtures and fittings.
The cabin ceiling is decked with tongue and groove teak throughout.

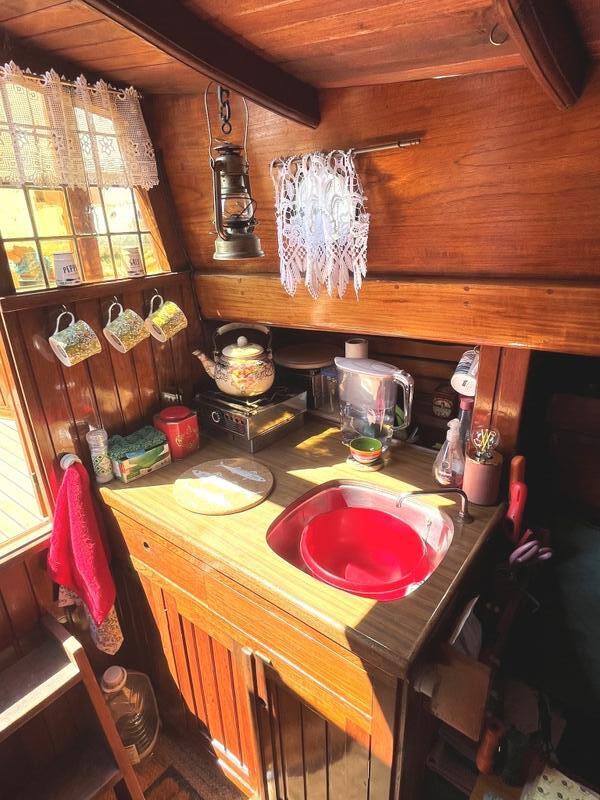

At the galley there are 2 x single meth burners. A stainless steel wash basin with a foot pump for the water supply, gravity drains. Purpose built stowage cupboard, waste bin and drawers for utensils.

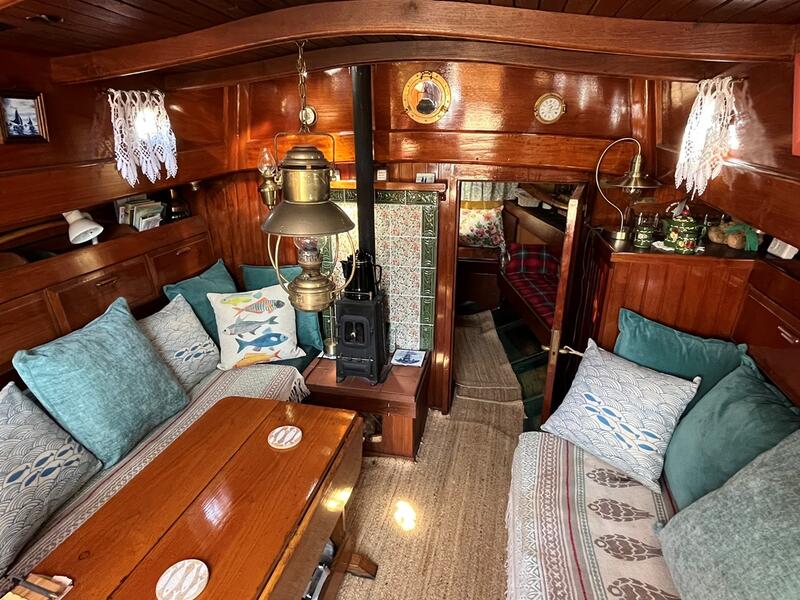

Two large settee berths with purpose built stowage lockers behind and beneath the bunks. Upholstered berth cushioning throughout.

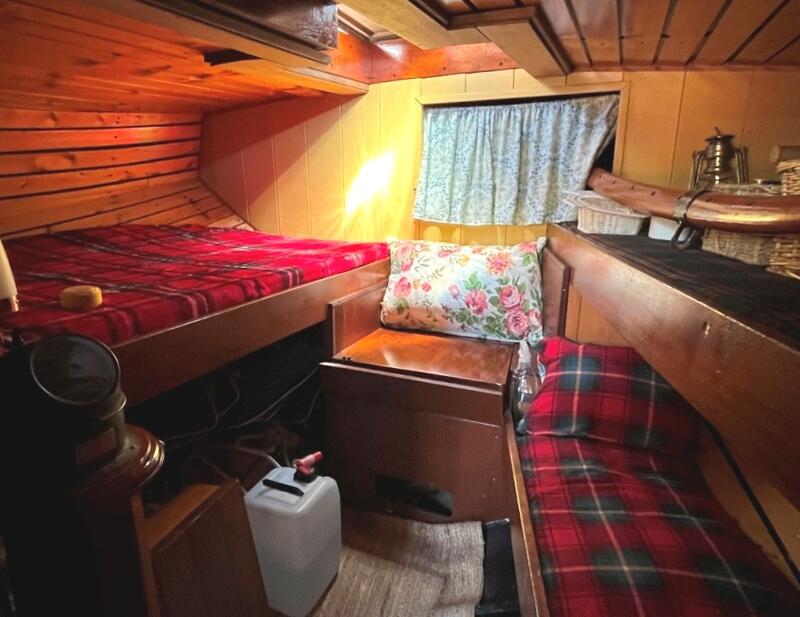

Through door into the forepeak. Large double berth to port. Starboard two small bunk beds.

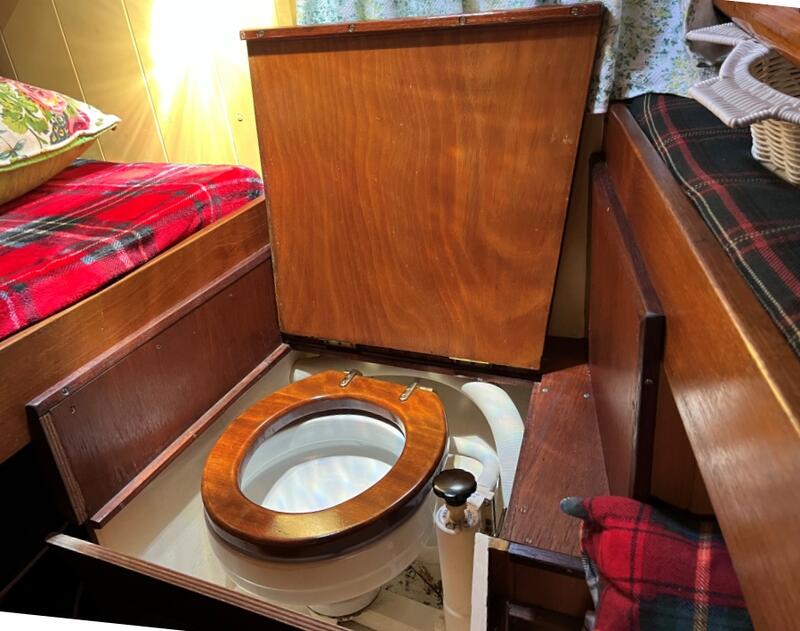

Manual sea toilet sited in its own cabinet. forward.
Oil lamp lighting in the cabin. Hanging main lamp and gimballed bulkhead lamp. 2 x tilly lamps over the galley and in the fore cabin.
Carpet runners laid on the cabin sole, there is no bilge. Lace curtaining on brass rails inside of the portlights.

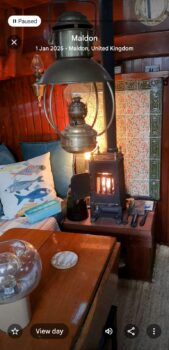

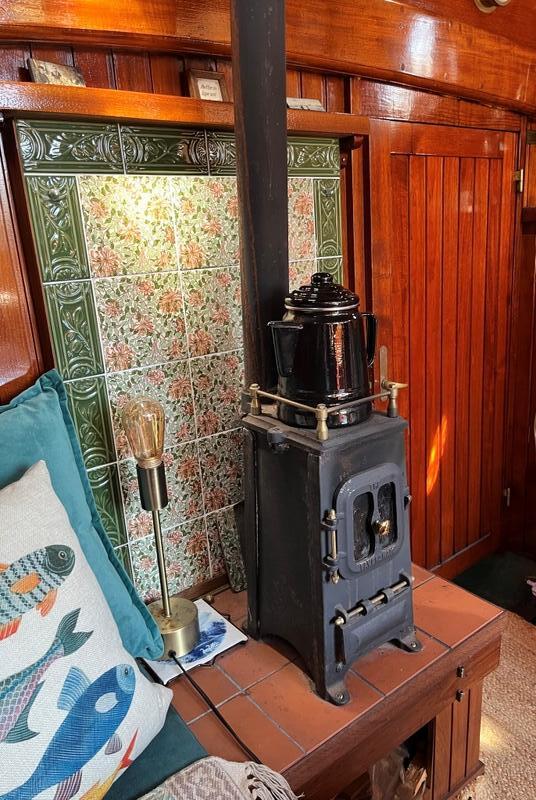

Recently installed a small multifuel stove with tiled mantle behind it against the forward bulkhead.
A drop leaf dining table with built in stowage.



Equipment:

Removable varnished wooden tiller (stowed in the fore cabin)

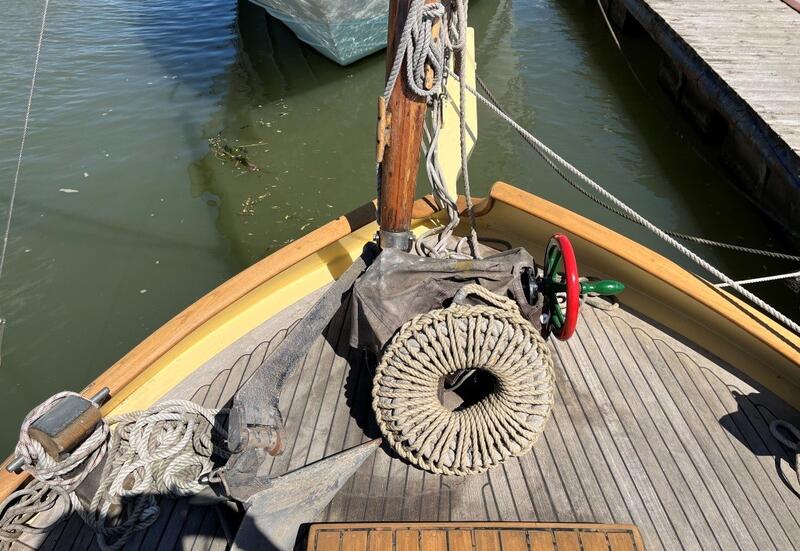

Main anchor on foredeck
Manual windlass
Several Traditionally knotted covered fenders.
Removable Binnacle (Stands in the cockpit, when required)
Cockpit cushions.
Pair of wooden leeboards
2 x winches with handles.
Boarding ladder

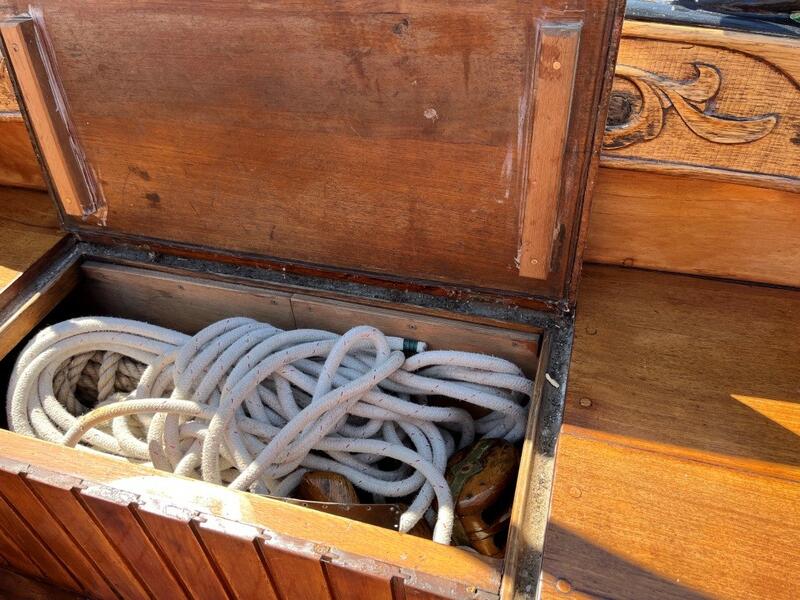

Mooring warps
Tarpaulin clear for used in summer and winter to protect her from the elements.

Sails:



Wooden mast and spars, all varnish finished. Mast deck stepped in a tabernacle. Galvanised bottle screws and standing rigging
Traditional block and warp for the running rigging . Varnished wooden main sheet block with synthetic sheet.

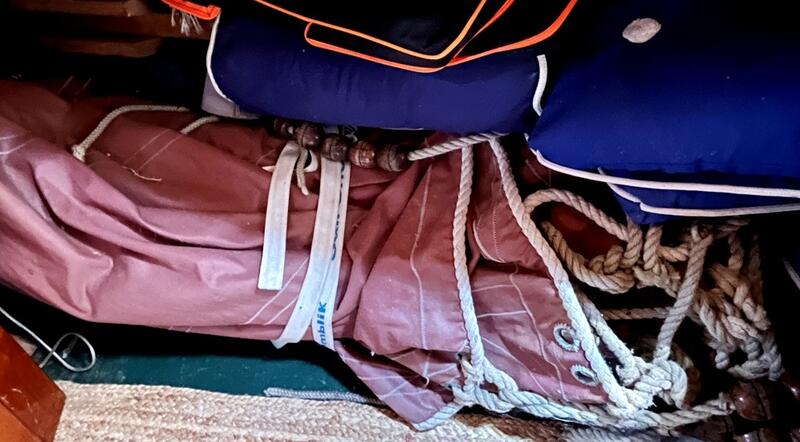

Tan Dacron main sail with rope trim. reefing points Gaff loosed footed. Fore sail with a roller reefing system it also has reefing points.
Storm Jib.
Wooden varnished bowsprit lowers from pivot point, when required.

Navigation Equipment:



Removable compass binnacle stand. Varnished, Echo sounder,  gauge visible in the cockpit.
VHF radio with microphone.
Charts and maps. Binoculars


.

Safety Equipment:

Fire  powder extinguisher, Flares expiry unchecked.
Grab rails on the coach roof.
manual Whale bilge pump
1 x life ring
