Price Details

Price: £4,950 GBP
Location: Mistley, nr Manningtree, Essex. GB
Make: Maurice Griffiths Bawley Yacht   Year: 1961
Condition: Not in commission, under cover,  laid up ashore.
Category: Traditional Sail
Class: Antique and Classics
Keel Type: Full Keel

Description

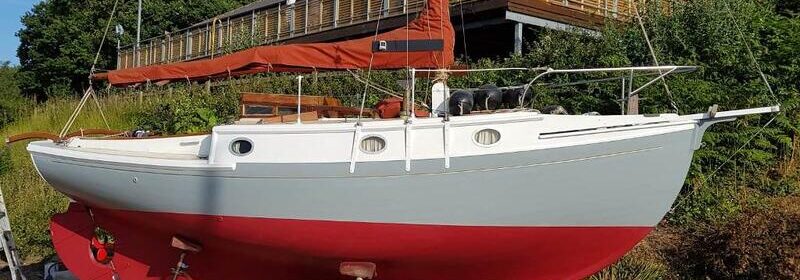

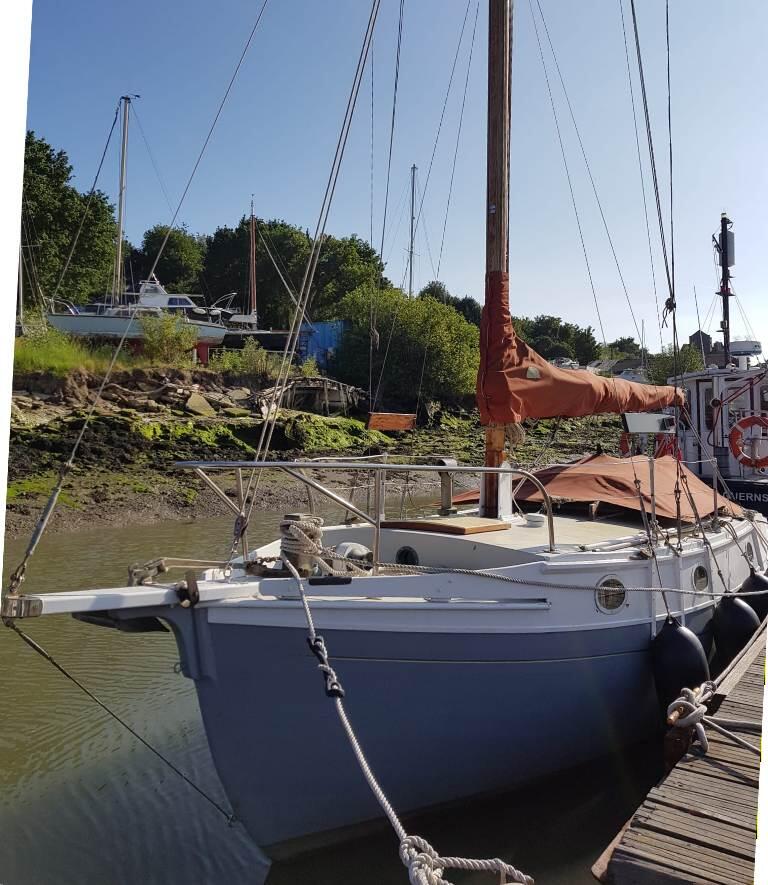

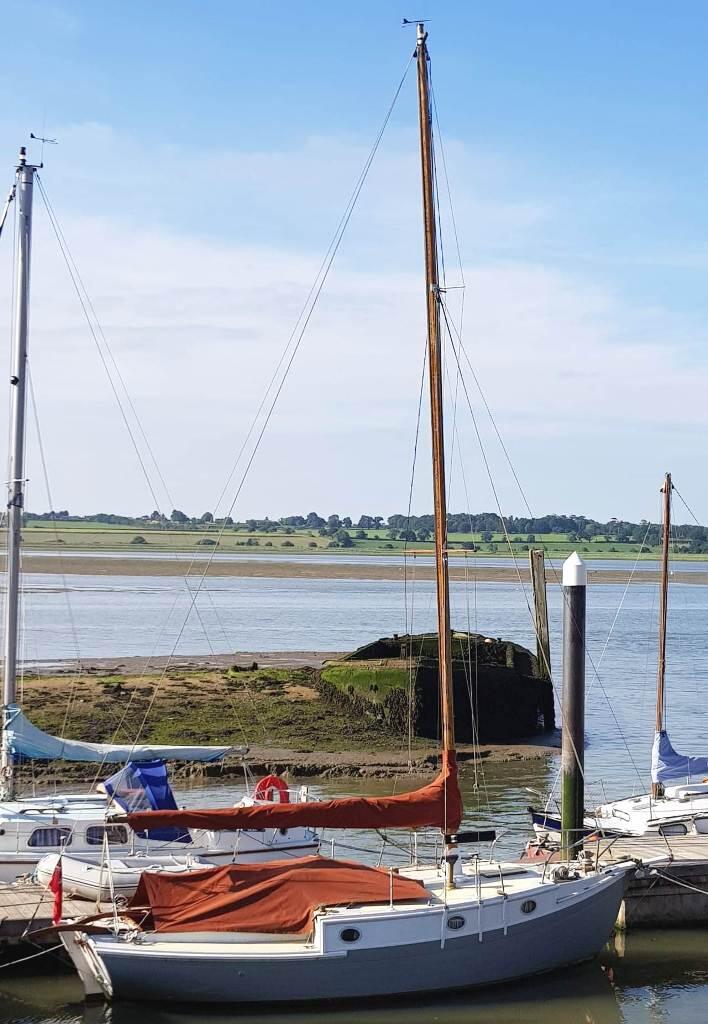

Pearl is a lovely example of a Maurice Griffith design Bawley Yacht. Built by the Johnson and Jago Co of Leigh on Sea.1961  A Classic little weekender.
She has been cosmetically well maintained,  she has stood out of the water, under cover since for several long years through .” Covid Times. ”
Her mast and spars have been stripped back, professionally repaired where necessary and revarnished. She was re antifouled.

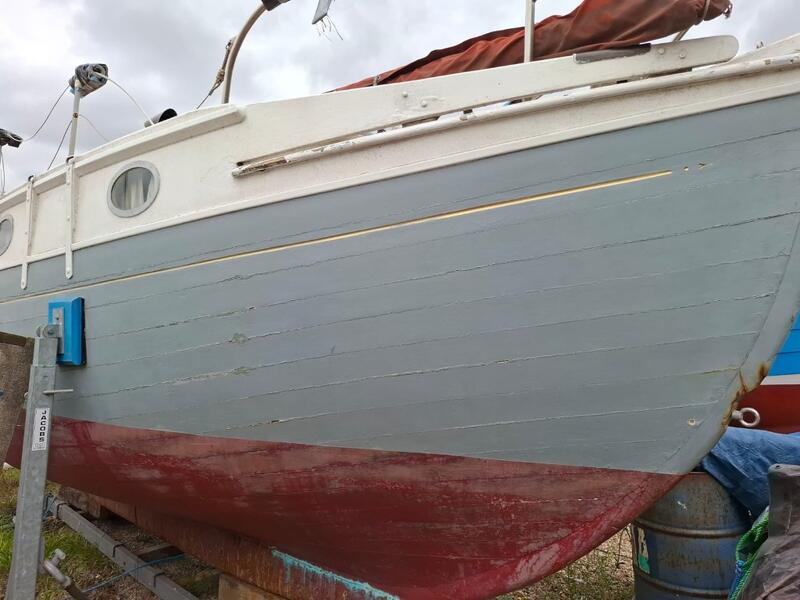

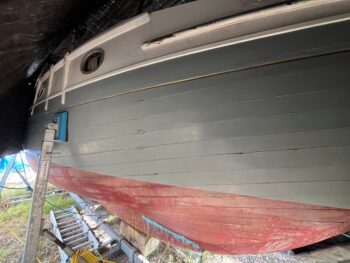

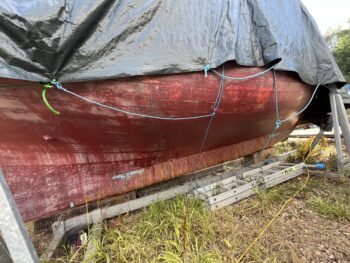

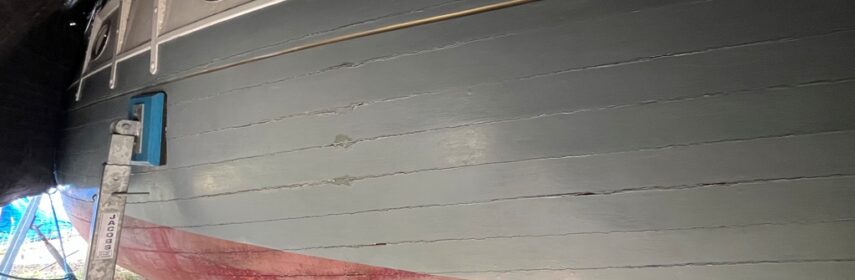

The hull is suffering from drying out, there are seams which require re caulking . Topsides requires fairing back and recaulking where necessary.

She sits in her own bespoke cradle, new 2022.   In her present ownership since 2018.

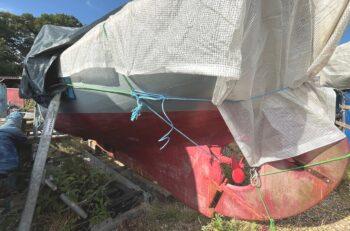

Images of her “as she” is presently, 1st August 2026.

Measurements

Nominal Length: 7.32m
Length Overall: 8.08m
Length Of Deck: 7.47m

Beam: 2.36m
Draft: 1.07m
Air Draft: 9.14m
Max Draft: 1.07m

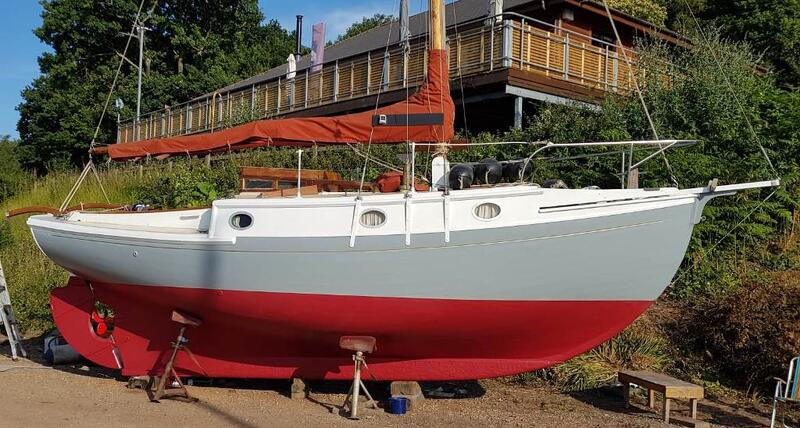

As she was her at last refit in 2023

Specifications

Fuel Tank Capacity: 40 litres
Displacement: 3500 kilograms
Cruising Speed: 5 knots
Engine Power: 30hp
Number of Engines: 1

Accommodation

Berths: 3
Cabins: 1
Heads: 1
Passenger Capacity: 2

Builder/Designer

Builder: Johnson Jago of Leigh on Sea Essex
Designer: Maurice Griffiths
Boat Name: Pearl

Hull

  Pearl ex Helen  2023

Hull Material: Wood
Hull Design: Displacement
Hull Speed: 8 knots

Engine

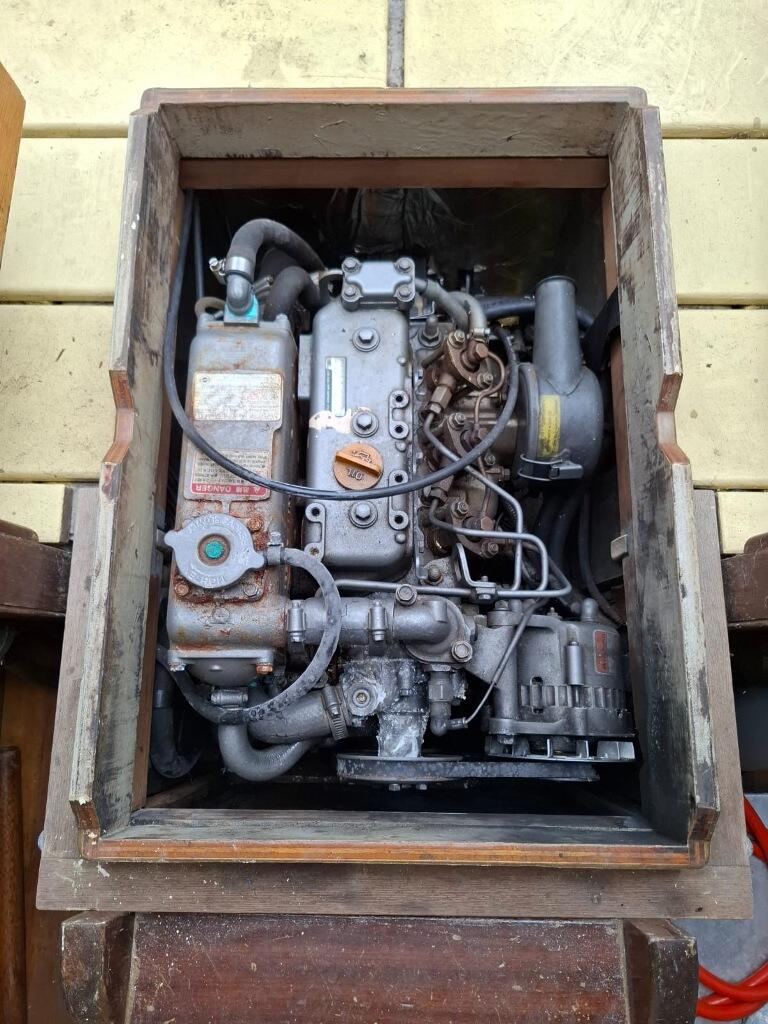

Engine Description: Yanmar  3GM 30, 27hp, three cylinders, sited in the companionway. Installed, new 2001 ,single lever control, in the open cockpit (forward, neutral and reverse).

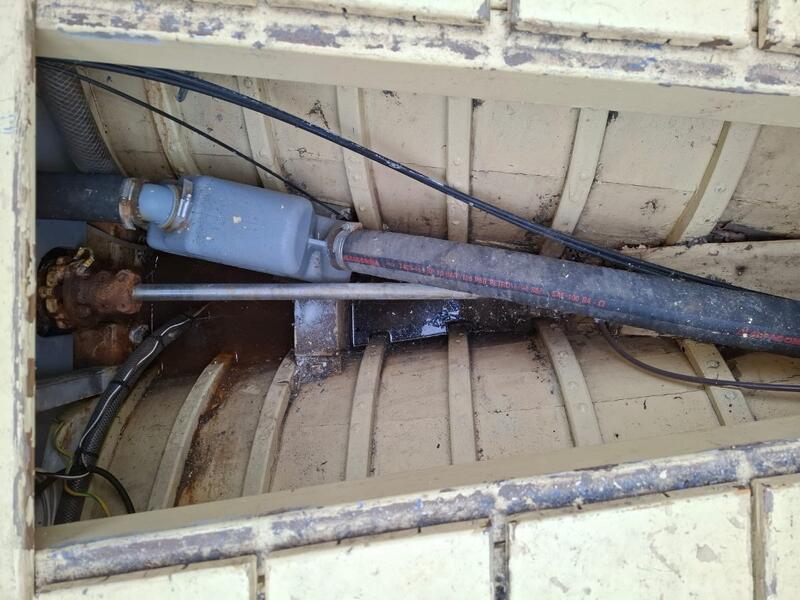

Throttle and stop control. Electric start. Shaft driven, Three bladed bronze propeller. Sea water cooled.
Fuel Type: diesel   Fuel tank is presently full, capacity unknown.

Construction:

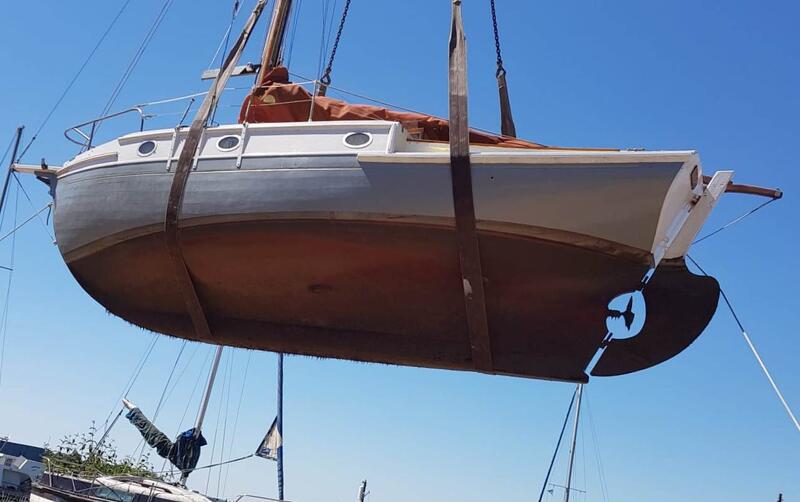

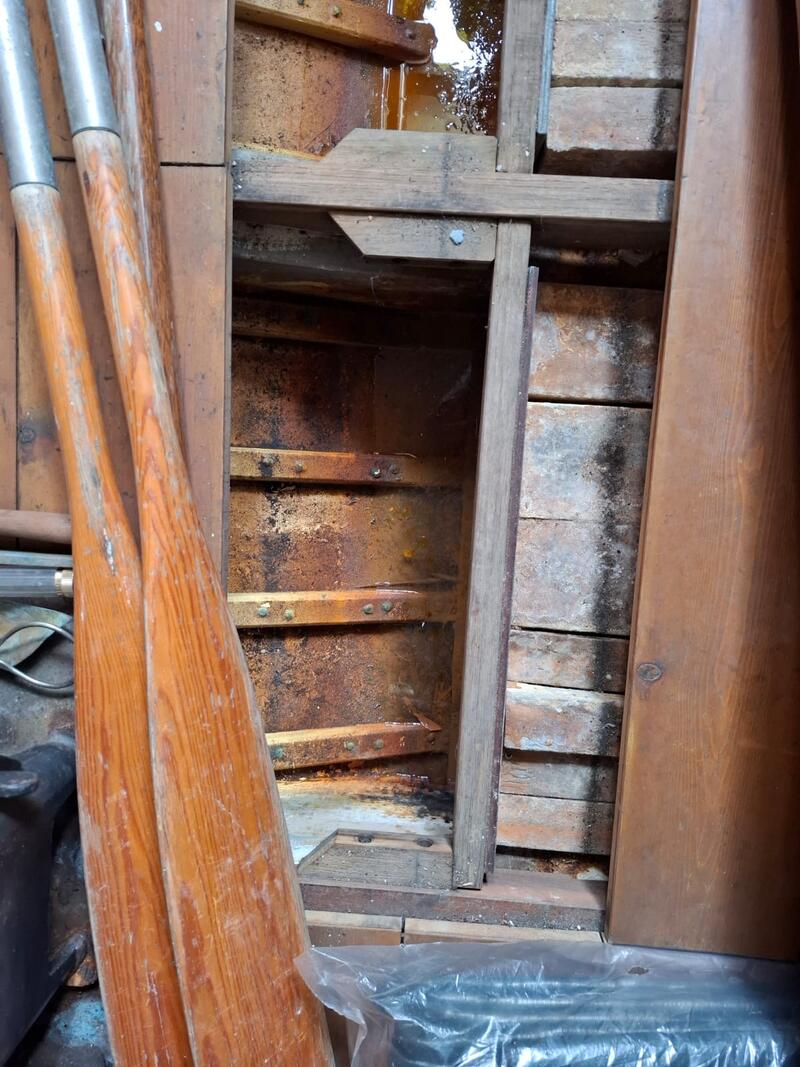

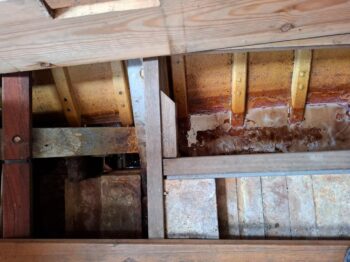

A single displacement carvel planked hull with Mahogany planking on steamed and bent frames and ribs. Sawn floors. All paint finished. Transom stern

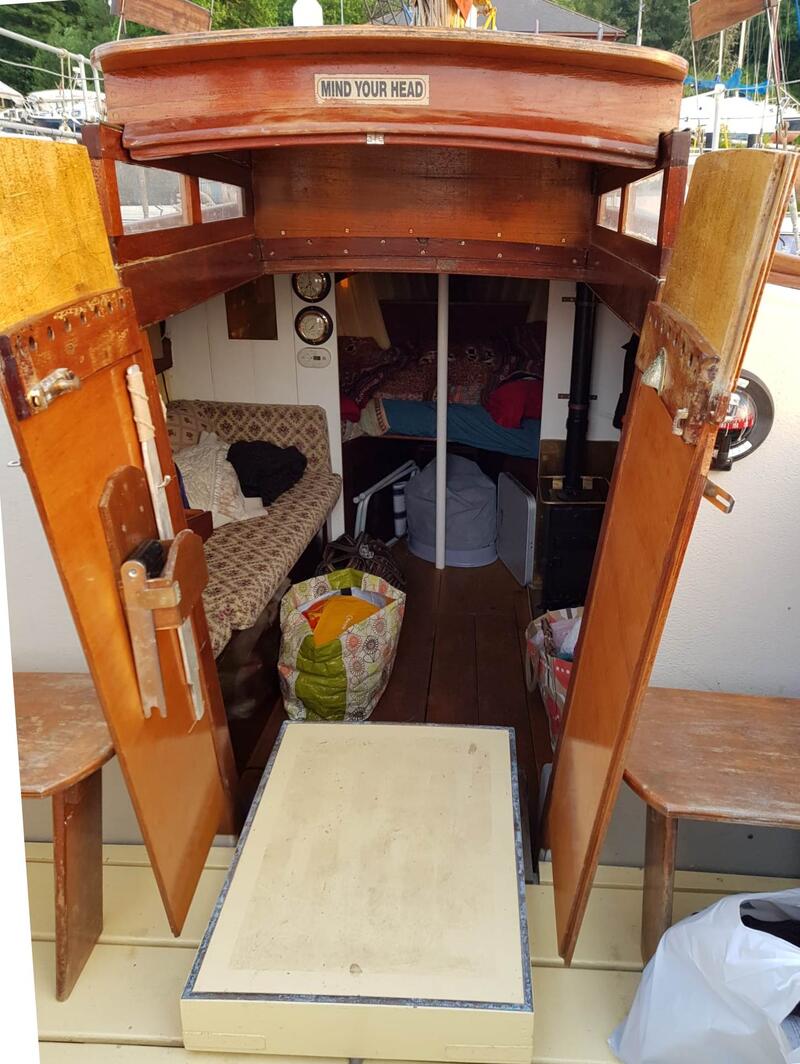

Raised/ glazed dog house roof with sliding hatch into the cabin, double companionway doors. Fore hatch over forepeak cabin.
Coach roof extends over the full beam of the vessel. Fixed portlights in the coach roof sides, an opening light, forward facing.
A cast iron ballast keel through bolted to the hull. Internal lead ingot trimming ballast.
Planking caulked, exterior and interior paint/ varnish finish. Grey gloss topsides.
Decks of ply wood epoxy sheathed and painted (White and Grey) .

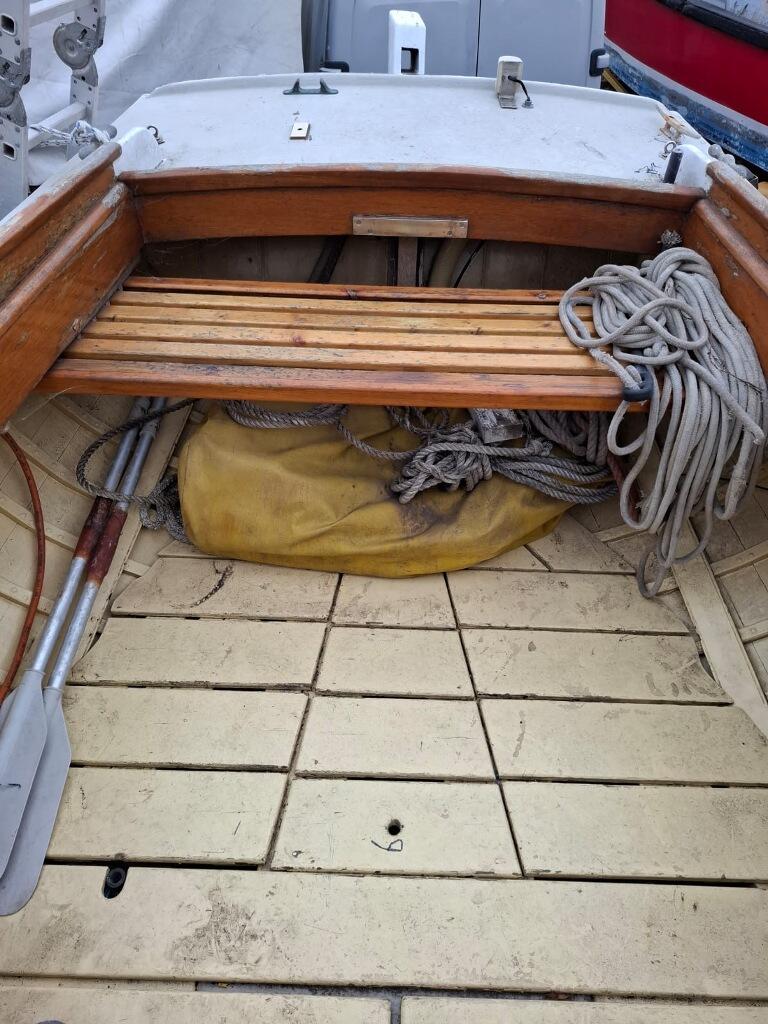

A deep open aft cockpit. slatted cockpit sole.



Accommodation:

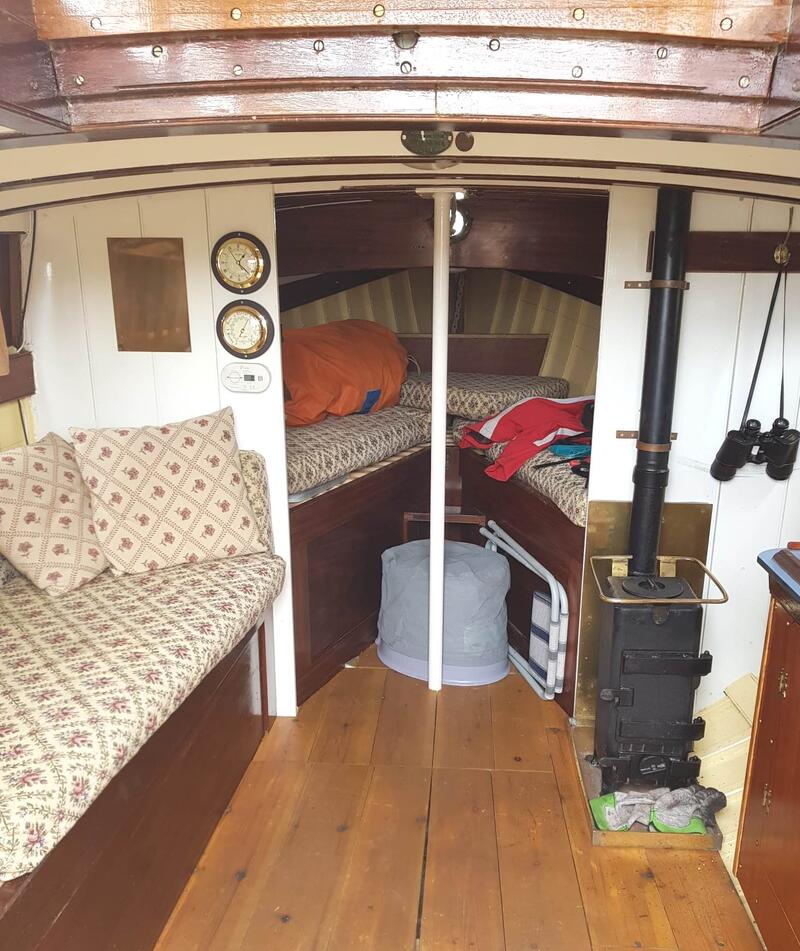

Open saloon with galley facility and navigation station with chart table.
Forepeak has 2 x single “V” berths with an infill, with stowage beneath. 6ft in length. Berth cushioning all upholstered fabric, all kept in dry store, in good condition.
Head room in the cabin 5ft – 5ft 4ins.  Portable heads unit by Suncamp.
A wood/ coal burning stove is set to starboard of the saloon between the galley and the forward bulkhead. opposite is a single settee (third) berth.

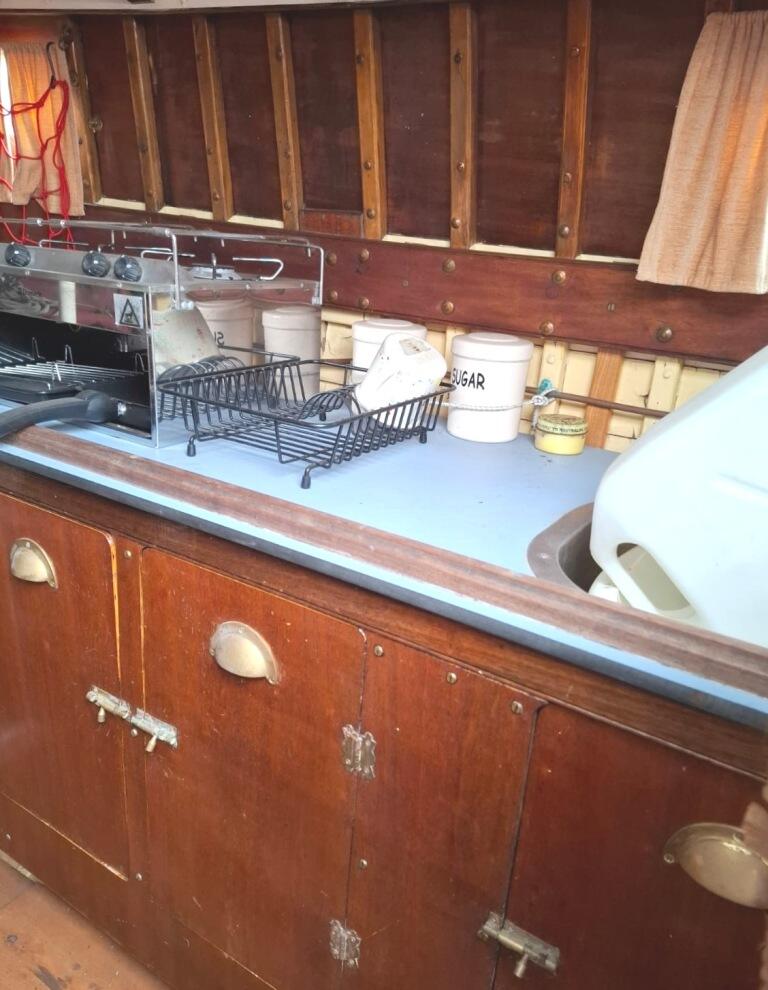

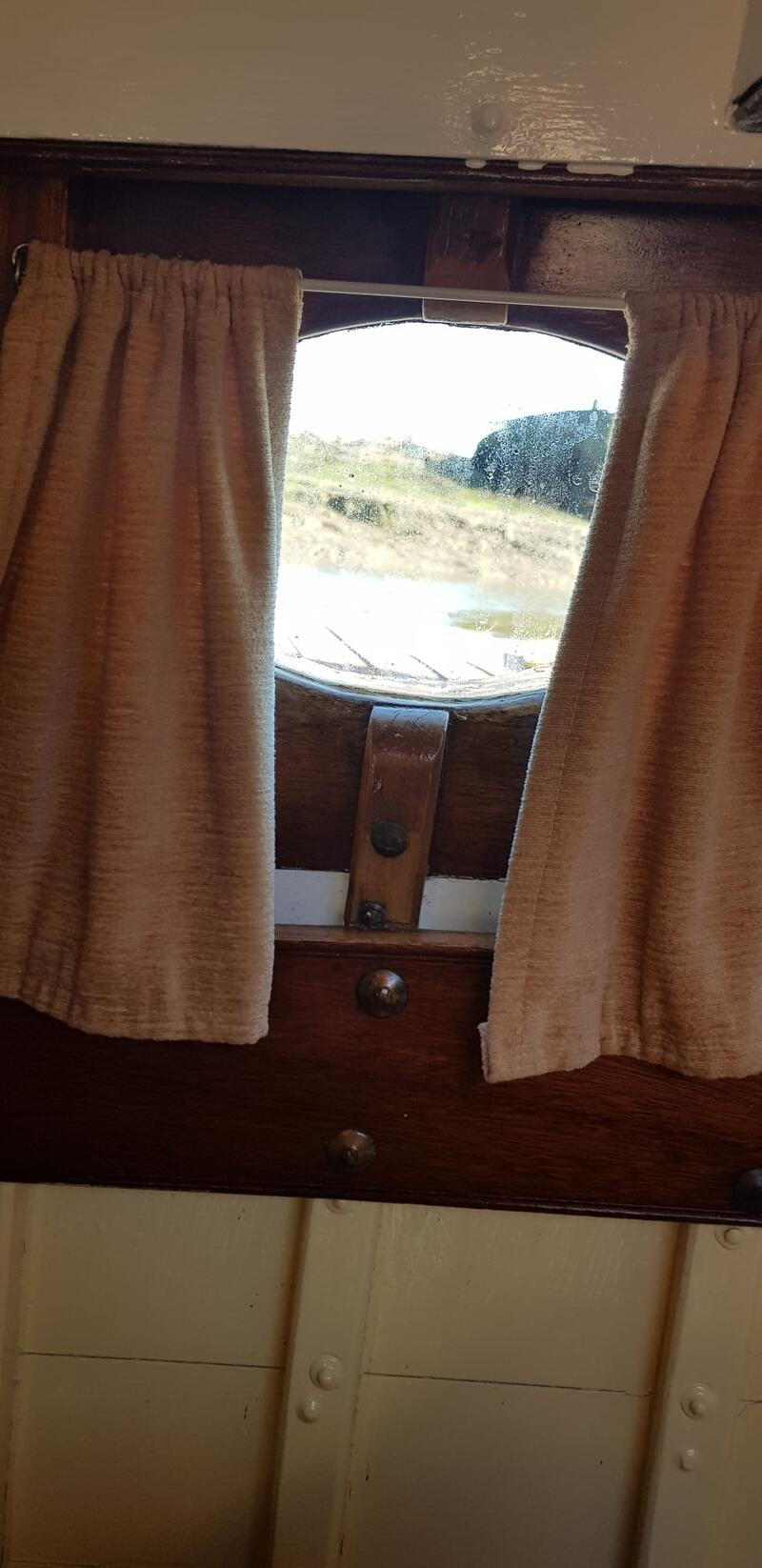

Galley is starboard side equipped with two burner gas cooker with grill, Gas bottle stowed in cockpit, a plastic washbowl inset into the worksurface. Stowage cupboards below. Curtaining at the portlights in the Saloon.
Fresh water supply in plastic jerry cans x 2.
12v Cabin lighting. 2 x Air vents and the chimney through the coach roof.
Open bench seating in the cockpit

Equipment:

A bespoke cradle by Jacob’s of Ipswich, new 2022.
Inflatable tender stowed with oars stowed in the cockpit .
2.2hp outboard motor.
Making her easy to load onto flat bed transport or standing ashore.
Main anchor over the bow with chain.
Canvass cockpit tent cover extends forward over the sliding hatch.
Fenders and mooring warps
Boat hook, bucket.



Sails:

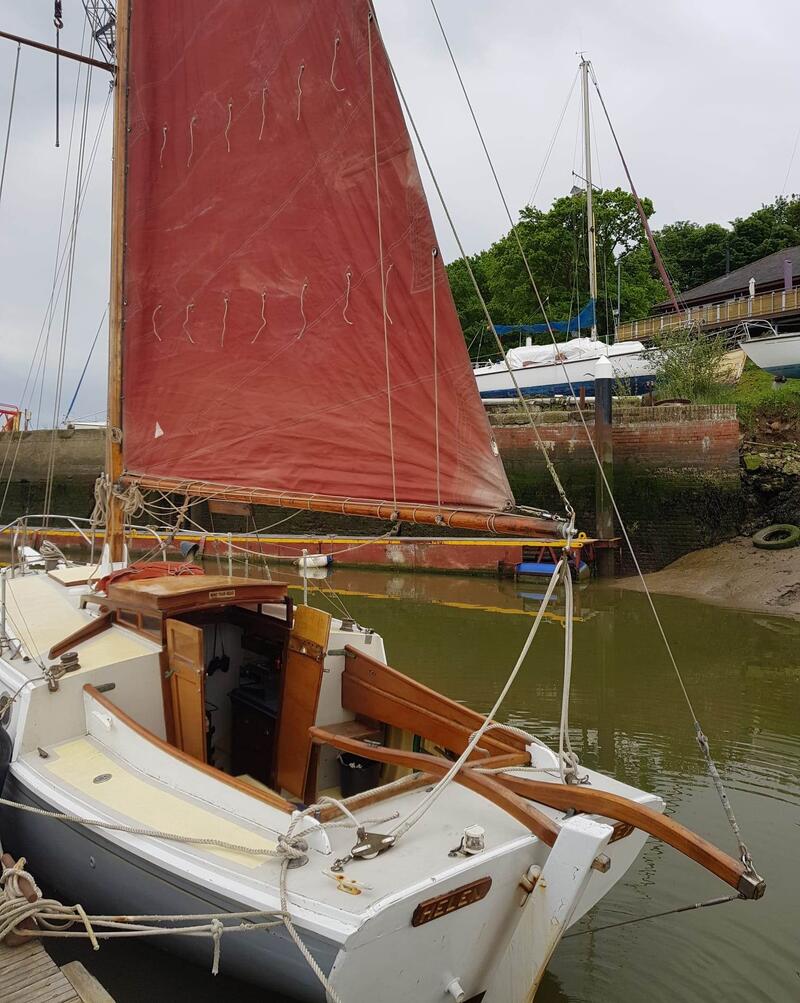

Bermudan cutter rig.
Wooden mast,(deck stepped), sat in tabernacle. varnished boom and bumpkin approx. 1m. Carries a plank bowsprit of approx.1m

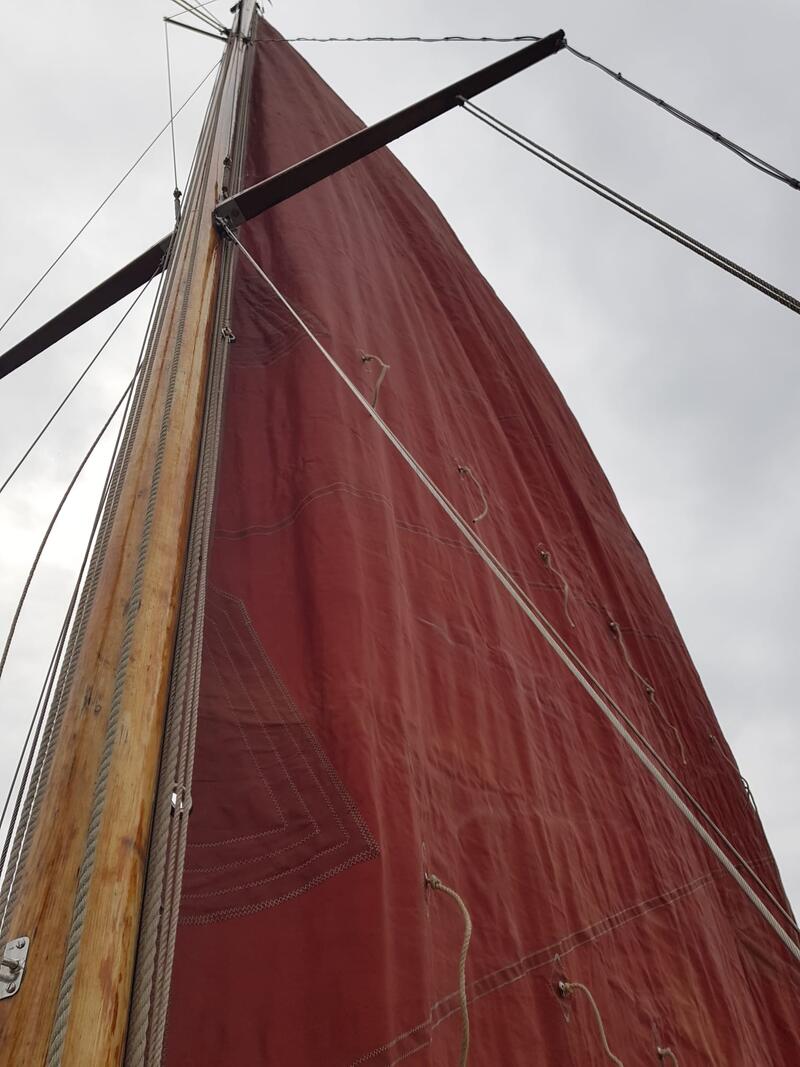

Main sail with two reefing lines. Track up the mast and laced onto the boom.
Main sail cover. Booming out pole.

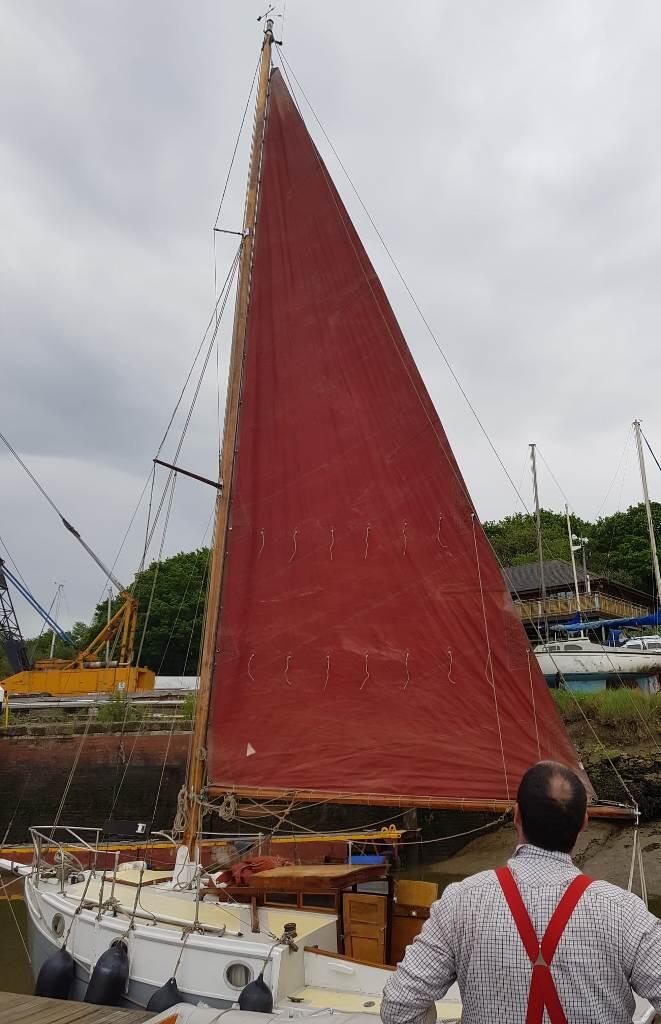

A stay sail, both in traditional tan colour. In a usable condition. Sail bags.

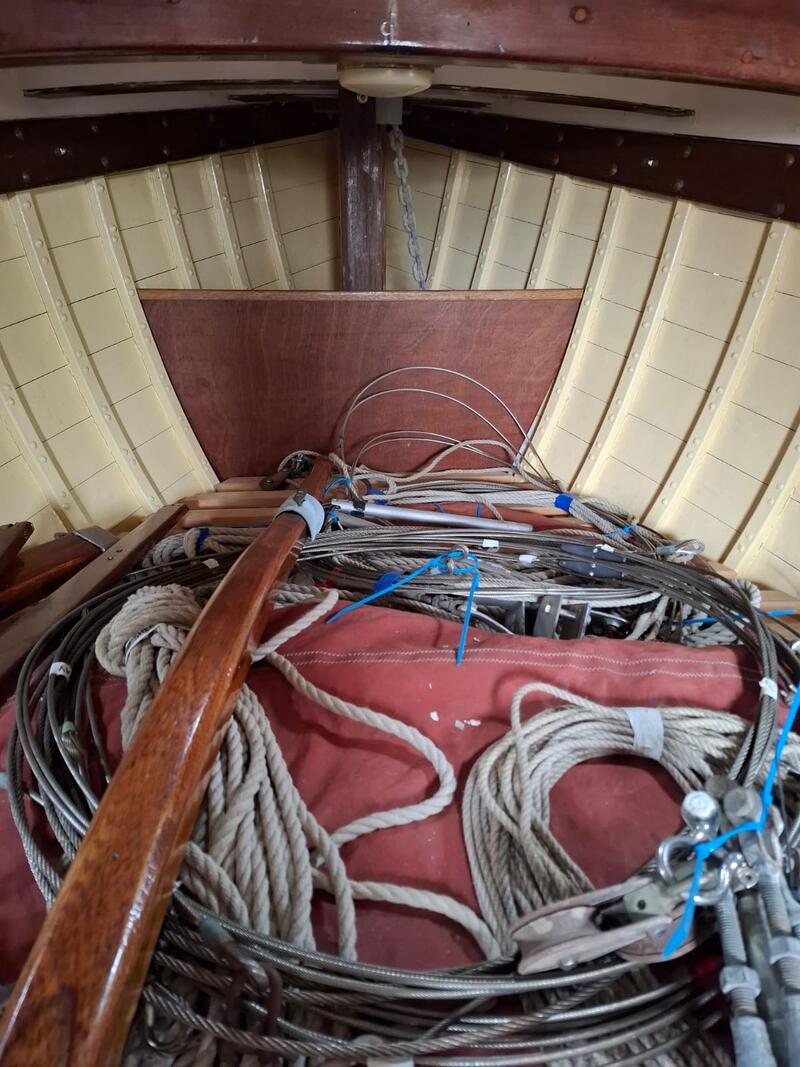

Traditional rope sheets and halyards. Tufnol blocks. Galvanised bottle screws.
A galvanised pin rail is fitted to the mast. Approx. 1m off the deck.
2 x sheet winches on the coach roof. winch handle. Varnished cross trees.
Main sheet block attached to the end of the boom down to s/s eyebolts each side of the aft deck.



Navigation Equipment:

Wooden varnished laminated tiller.

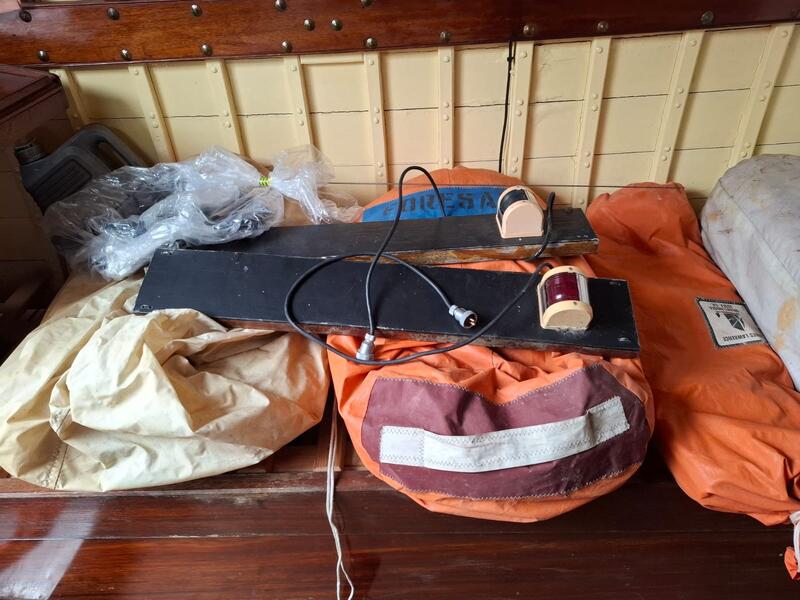

Navigation lights on lightboards

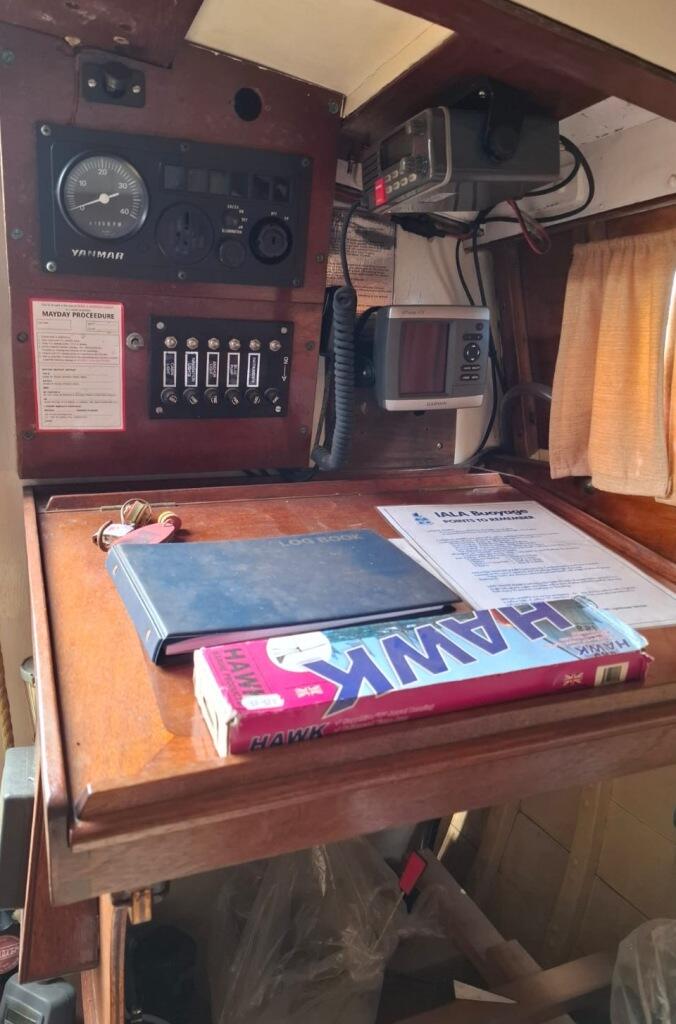

Chart table portside of companionway. with radio engine gauge / ignition. Fuse board.
Nasa VHF transceiver with DSC capability, Garmin GPS Map 451, Nasa Clipper depth sounder.
Hawk wind vane.
Magnetic compass through bulkhead

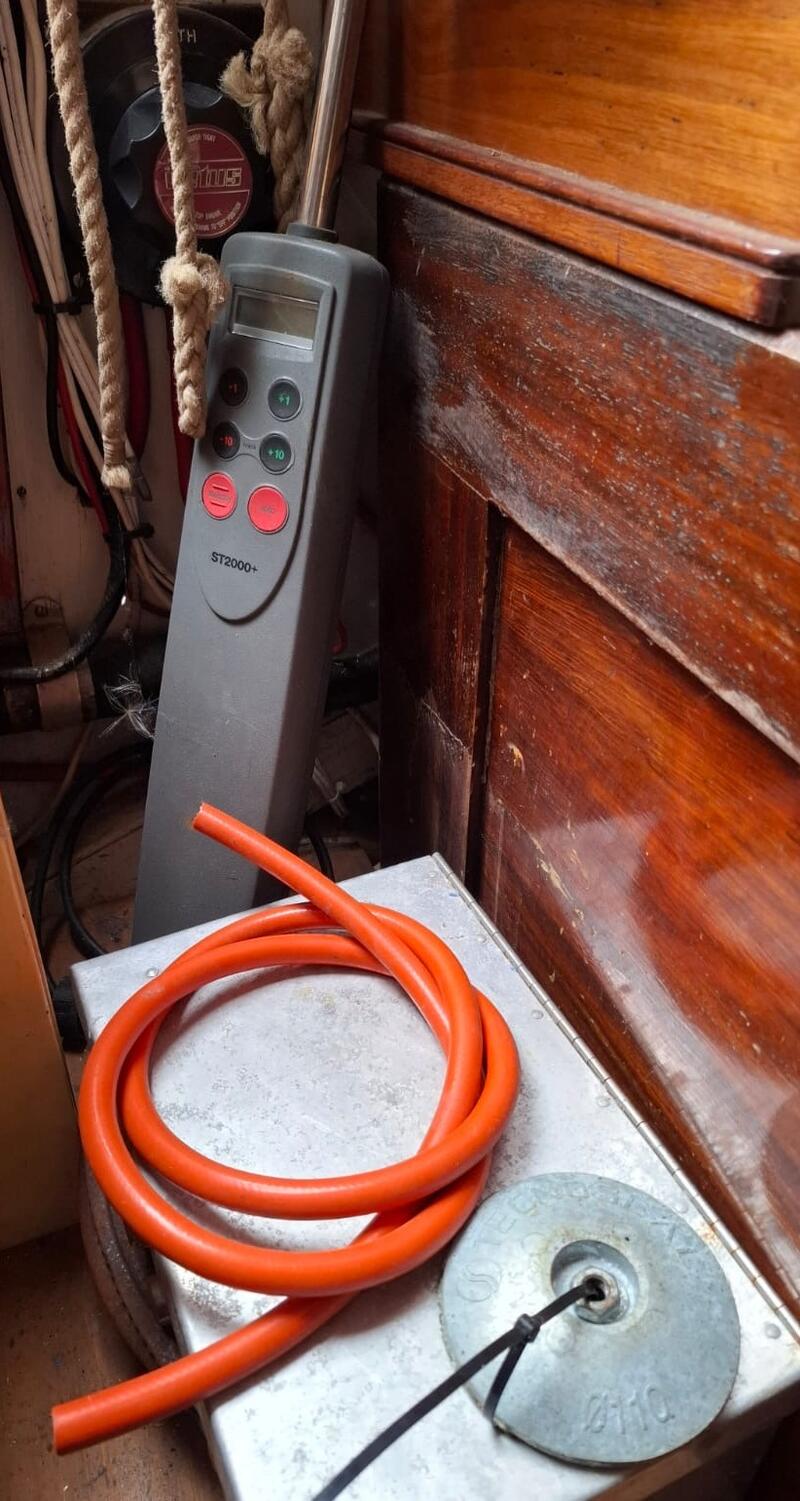

Raymarine ST2000+ automatic pilot stowed in the main cabin.
Clock and barometer fitted to the bulkhead
Red ensign

Safety Equipment:

S/s pulpit around the bow. Galvanised stanchion posts with guard wires.
Manual bilge pump in cockpit.
Automatic submersible bilge pump aft of the engine.
Powder dry fire extinguisher.
Fire blanket.
emergency tiller
Gas sniffer.
